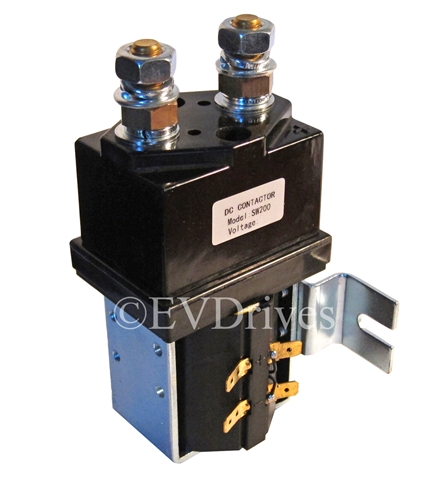

Albright SW200 Style Main Contactor 12V, 24V, 36V, 48V, 64V & 72V

Description Rated Current: 400A Continuous & 600A Peak Albright SW200 Style Main Contactor 12V, 24V, 36V, 48V, 64V & 72V The SW200 series of contactors has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks, airport tractors, and such like. They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity. Rated Current: 400 Amps Voltage Coil Options: 12V, 24V, 36V, 48V, 64V & 72V Single Pole, Single Throw, Normally Open Magnetic Blowouts Coil Power: 11 to 15W Rated Voltage of Contact Circuit: 6 to 80 Volts DC Dielectric Voltage Strength: 50Hz 1000V AC 1min Current Volt Drop of Main Contact at 100A: Not above 80mV Operating time, Contact Makes & Contact Brakes – >30ms Mechanical Life: 100 thousand times Electric Life: 20 thousand times Lug connector size: 3/8ths, 1/4″ spade for the coil Weight: 2.72 lbs
