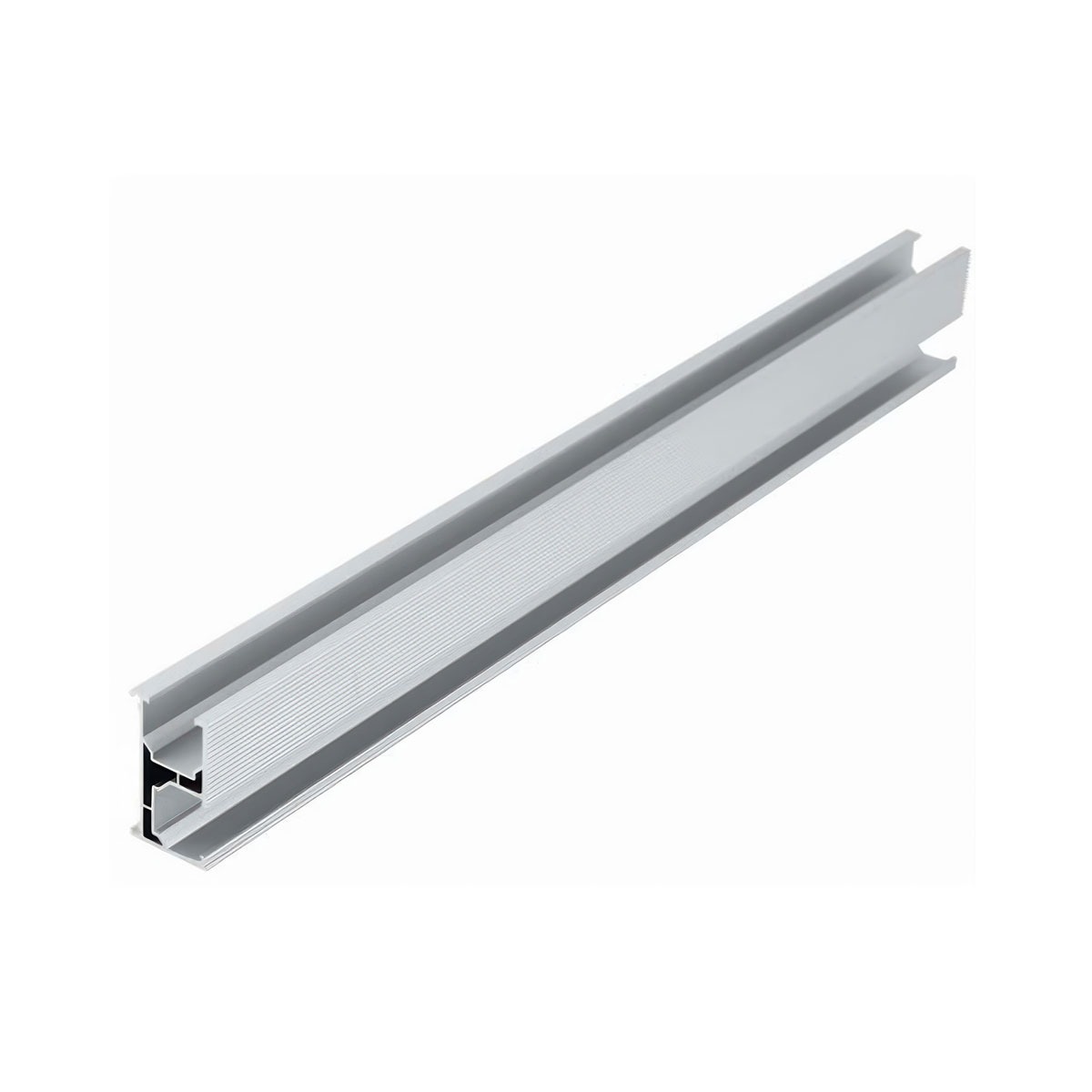

Fastensol 3550mm Silver Rail

The distance between the rails should be around three-quarters of the panel height. The panels are then laid on the rails and clamped in place with the end and mid clamps.For long rows, simply join lengths of rail using the rail splice kits. Rails can be cut to length with a hacksaw or grinder.System Features and Specifications:Dimensions: 3550 x 50 x 29 mmSuitable for pitched and flat roofsCladding type: tiled, slate and sheet metal (other roof mounts also available)Maximum slope: 60 degreesWind load: up to 60m/sSnow load: 2.0kn/m2Maximum building height: 20mMaterial: aluminiumColor: silverWarranty: 12 years durability on material, 5 years on finishManufacturer: Xiamen Fasten Solar Technology Co., Ltd561 rails per pallet cageProduct code: F-R3550-GSwarrantyDatasheet
